  • 4 Digit 7 Segment Common anode LED Display
  • 4 Digit 7 Segment Common anode LED Display
Enlarge 4 Digit 7 Segment Common anode LED Display

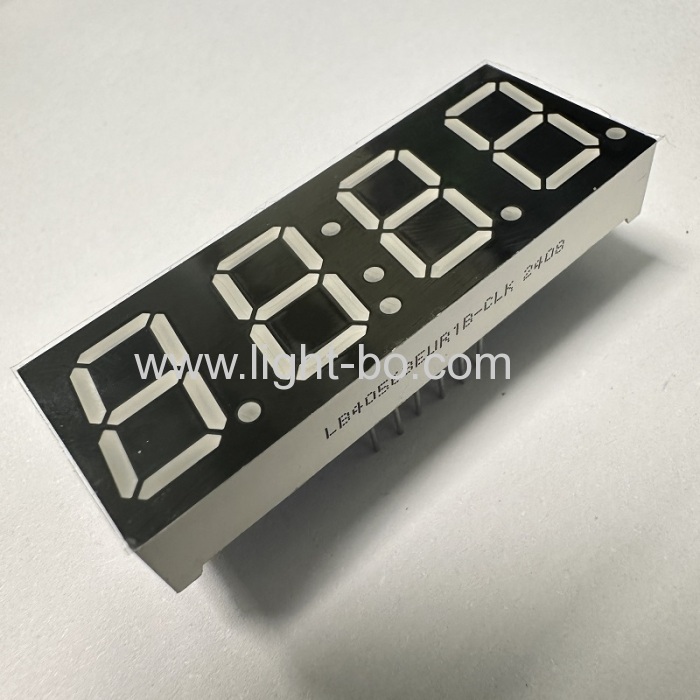

4 Digit 7 Segment Common anode LED Display

Payment Terms: T/T,WU
Place of Origin: Guangdong, China (Mainland)
View the Video: video
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: LB40563BUR1B-CLK
Production Capacity: 50,000 pcs /day
Delivery Date: 15 - 20 days
Polarity: Common Anode
Surface Color: Black and White
Means of Transport: Ocean,Land,Air
Packing: EPE+Carton
Brand Name: Light-Bo
Product type: Four digits led display
Package Dimensions: 50*19*8mm

Digital Height:0.56"
Life Time:more than 3 years
Features:Low Power Consumption, High Reliability, Easy to Use

Product Description


Specification of Segment LED Displays

Product NameUltra Bright Red Four Digit Seven Segment LED Display for Induction CookerOther Optional
Part NO.LB40563BUR1B-CLKCan print your part number
Digit number4digit2digits,3digits, 4digits,5digits,6 digits
Digit height0.56 inch0.25,0.36,0.39....5.0(inch)
ColorUltra Bright RedWhite, blue,pure green, yellow-green, orange,etc.
Size50*19*8 mm

Other size are supported

PolarityCommon AnodeCommon Cathode
Life span60000hours
Free Samplessupported
Lead time for sample5-7 working daysTooling samples are 15-20 working days
Lead time for formal order15-20 working daysAccording to order quantity
OEM&ODMSupportBased on customer's drawing or idea
LOGO printingSupportBased on customer's drawing or idea
MOQ1000PCSCan accept 100-500pcs for first order



Feature of Segment LED Displays

Forward voltage (high luminous intensity output)

Low power consumption

Extremely low current

Luminous evenly distributed on each segment

Industrial standard size

Provides excellent reliability in bright ambient light

Stable performance

Long lifetime

Meet RoHS/REACH compliant


Application of Segment LED Displays

Audio equipments or instrument panels

Home electronic appliances

Numeric displays

Multimedia products

General use for digital indicators,temperature indiators, humidity indicators,process indicators,and so on


Code:Ultra Bright Red -UR

ParameterSymbolConditionMinTypMaxUnit
Forward VoltageVfIf=10mA1.8
2.2V
Reverse VoltageVrIr=10uA5

V
Luminous IntenstyIvIf=10mA90
100mcd
Spectrum With Of Half Value△λIf=10mA
20
nm
WavelengthDλIf=10mA620
625nm


Color:Pure Green

ParameterSymbolConditionMinTypMaxUnit
Forward VoltageVfIf=20mA2.5
3.0V
Reverse VoltageVrIr=10uA
5
V
Luminous IntenstyIvIf=20mA120
160mcd
Spectrum With Of Half ValueλIf=20mA
20
nm
WavelengthDλIf=20mA515
525nm


Code:Yellow Green- J/JU

ParameterSymbolConditionMinTypMaxUnit
Forward VoltageVfIf=10mA1.8
2.4V
Reverse VoltageVrIr=10uA5

V
Luminous IntenstyIvIf=10mA30
40mcd
Spectrum With Of Half Value△λIf=10mA
20
nm
WavelengthDλIf=10mA569
573nm


Code:Amber/Yellow -Y

ParameterSymbolConditionMinTypMaxUnit
Forward VoltageVfIf=10mA1.8
2.4V
Reverse VoltageVrIr=10uA5

V
Luminous IntenstyIvIf=10mA50
60mcd
Spectrum With Of Half Value△λIf=10mA
20
nm
WavelengthDλIf=10mA585
595nm


Absolute Maximum Ratings(Ta=25℃)

ParameterSymbolRatingsUnit
Forward Current(per dice)Ipm20mA
Reverse Voltage(per dice)Vr5V
Power Dissipation(per dice)Pm80mW
Operating Temperature RangeTopr-40~+120℃
Storage Temperature RangeTstg-40~+120℃
Solder Temperature(3 sec)Th260℃


Quick Detail of Segment LED Displays

1. We can supply you all kinds of 7 segment LED display:

--- Digit size: from 0.25" to 20"

--- Digit Numer: 1, 2, 3, 4, 5 and 6 digits

2. Segment : 7 segment,14segment and16 segment both available

3. Available Emitting color: Red, Yellow-green,green, blue, yellow, pink, white, bi-color

4. Available surface color: black,gray or red
