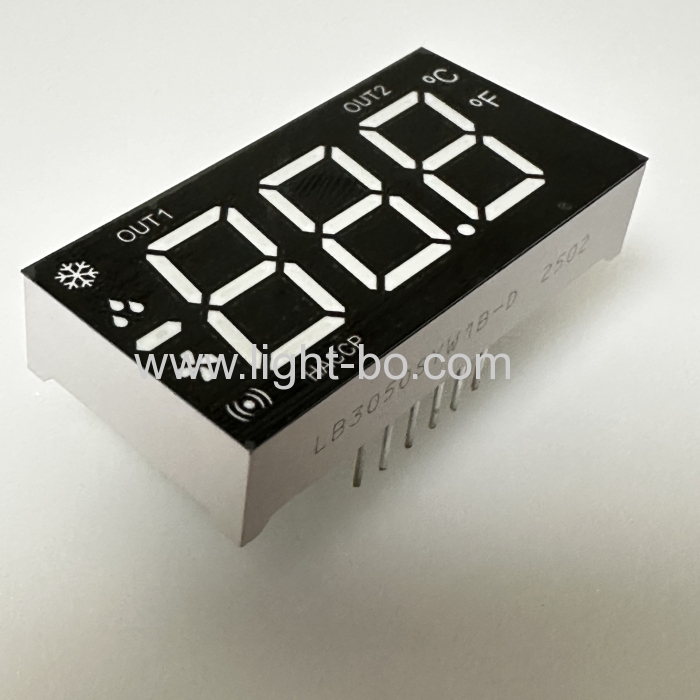

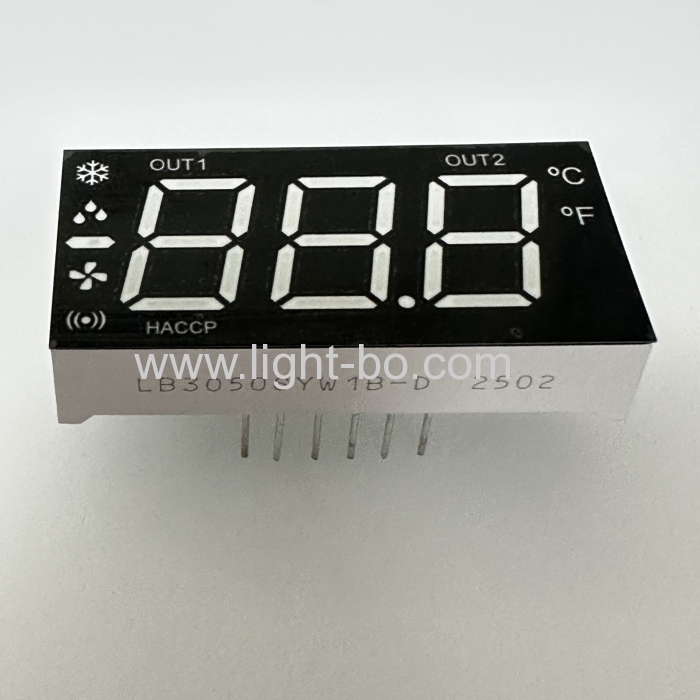

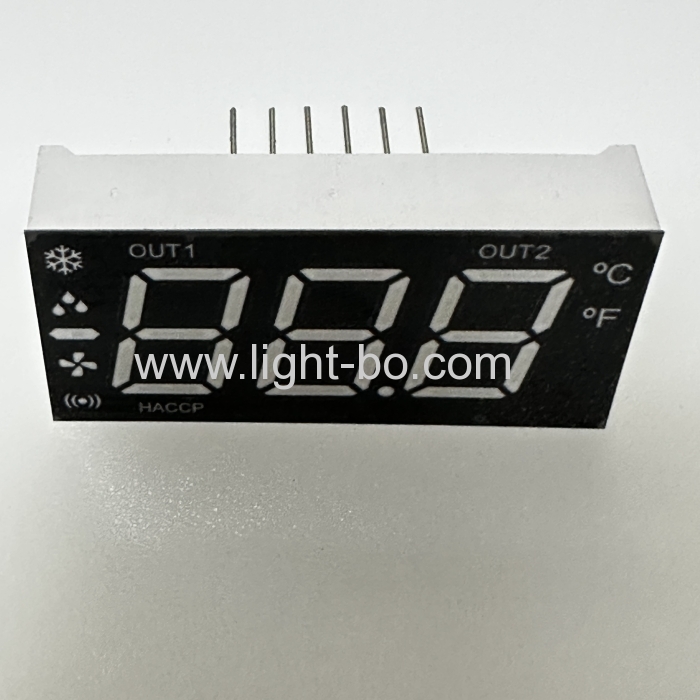

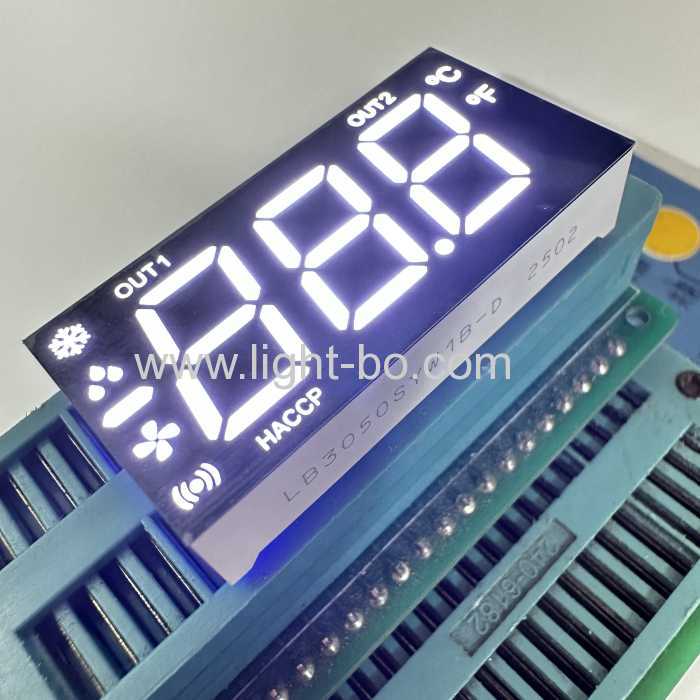

Ultra bright white LED Display 7 Segment 3 Digit 12.7mm Common cathode for Refrigeration control panel

• Key Specifications/Special Features:

•  Triple digit 7 segment led display with minus sign

• Digit height: 12.7mm (0.50 inch)

• Outer dimensions: 38.2 x 19 x 8mm

• Polarity: common cathode

• LED color: Ultra bright white

• X/Y: 0.29-0.31

• Luminous intensity: 80-100mcd

• Forward voltage: 2.8-3.2V/led

• Forward current:5-10mA/led

• Made With white segments and black surface with film

• Emitting Colors:available in red, blue, green, white, amber, yellow and orange,Multi-colour.

•

•

•

•

•

•

•


•

•


•

• Absolute Maximum Ratings(Ta=25ºC)

  Parameter	Symbol	Ratings	Unit
  Forward Current(per dice)	Ipm	20	mA
  Reverse Voltage(per dice)	Vr	5	V
  Power Dissipation(per dice)	Pm	80	mW
  Operating Temperature Range	Topr	-40~+85	ºC
  Storage Temperature Range	Tstg	-40~+85	ºC
  Solder Temperature(≤3 seconds)	Th	260	ºC



  Code:Yellow Green- J

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.4	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	30		40	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	569		574	nm



  Code:Amber/Yellow -Y

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.5	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	60		80	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	585		595	nm



  Code:Orange -F

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.4	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	60		80	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	600		605	nm



  Code:Super Bright Red -R

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	50		60	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	630		635	nm



  Code:Ultra Bright Red -UR

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	80		100	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	625		635	nm



  Code:Pure Green -G

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	2.6		3.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	120		180	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	515		525	nm


  Code:Ultra Bright Blue -BH

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	2.8		3.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	120		140	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	460		465	nm

•

• Code:Ultra Bright White -WH

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	2.8		3.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	120		140	mcd
  LED color Temperature	K	If=10mA	5500	20	6800	K
  Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

• High luminous intensity and reliability

• Low power consumption

• low current

• Stable performance

• Long lifetime

• Easy assembly

• IC compatible

• Certificate: RoHS

•


• Applications:

• widely used for home appliances,Sanitiser Dispenser,tempearture indicators,dishwasher controller,humidity indicators, refrigerator controller,thernostats indicator,heating and cooling control and so on .
